TV-Combination vehicle | 5.5 t

With the combination vehicle specially equipped according to your wishes, you are ideally equipped...

Whether van or truck, as a pure inspection vehicle or combined with a high-pressure flusher - a Ritec vehicle-fit-out offers tailor-made solutions for all conditions at your place of operation.

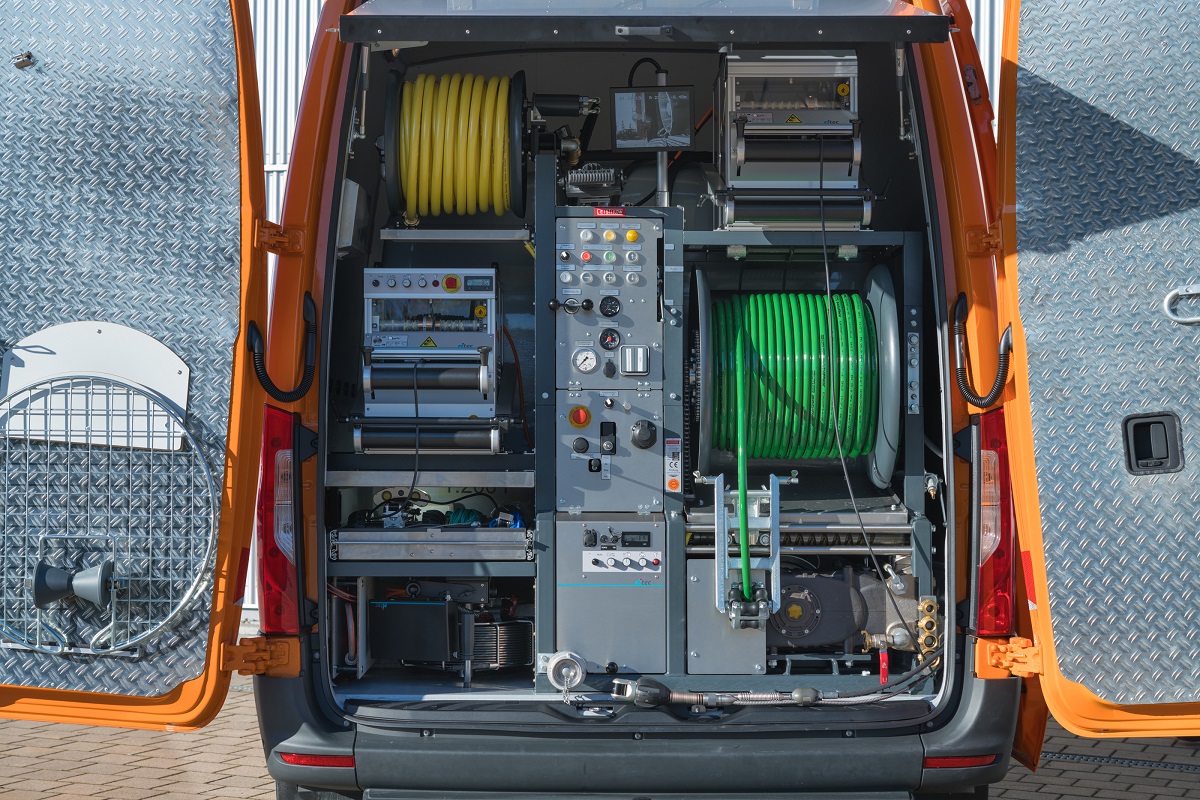

Rear working area


Combination vehicle with TV technology and/or high pressure water

  • Pneumatically operated weather protection flap
  • Rear view camera for the rear working area
  • Monitor for video picture
  • LED work area floodlight
  • Cable drum and carriage system for pipe inspections
  • Cable drum for water jetting camera
  • Hose reel
  • Lockable slider unit
  • Shaft grating with cable deflection pulley
  • Water tank with 1200 ltr. capacity
  • Filling hose for water tank
  • Connections for RiCubio®-systems

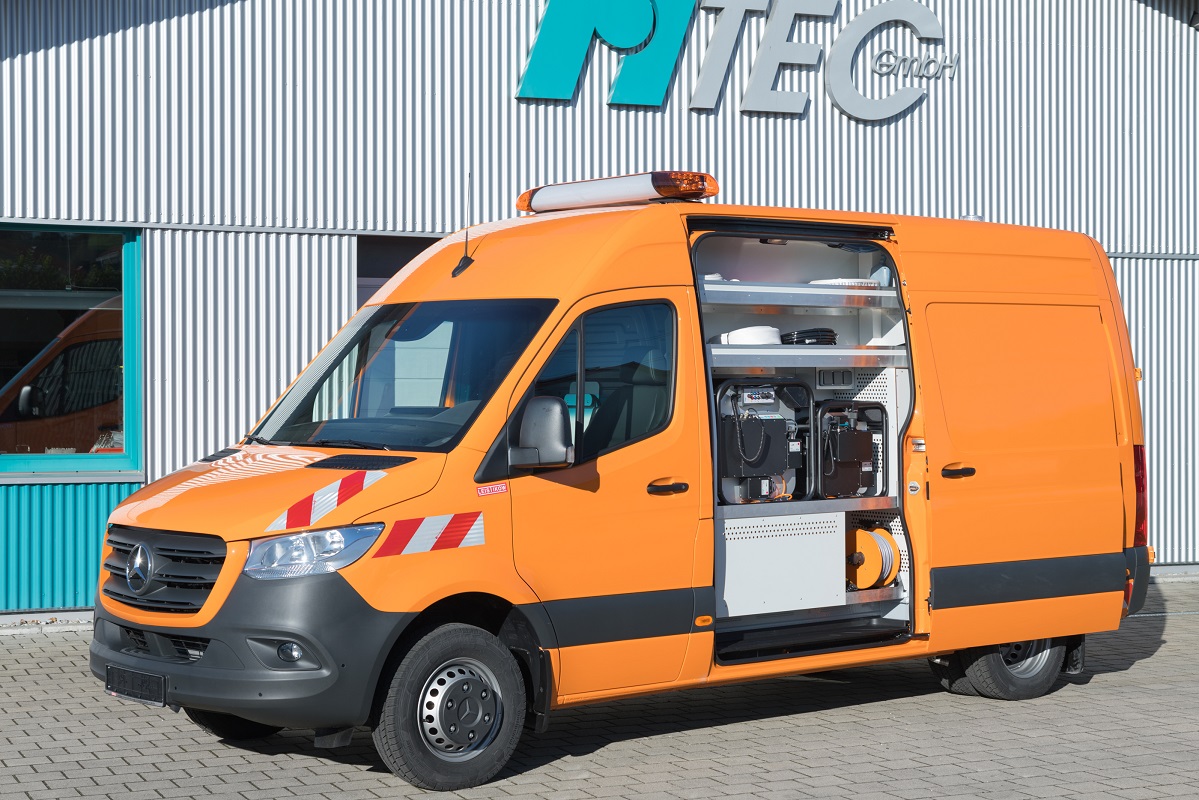

Combination vehicle sideways: view into the equipment room

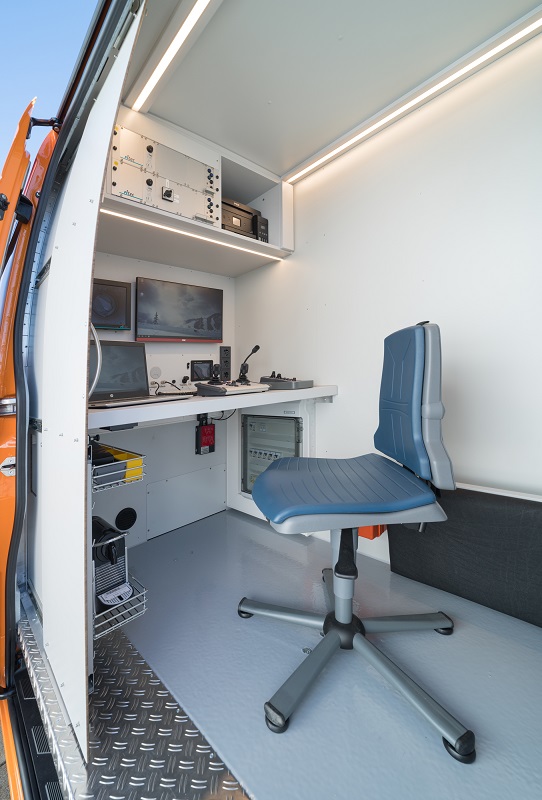

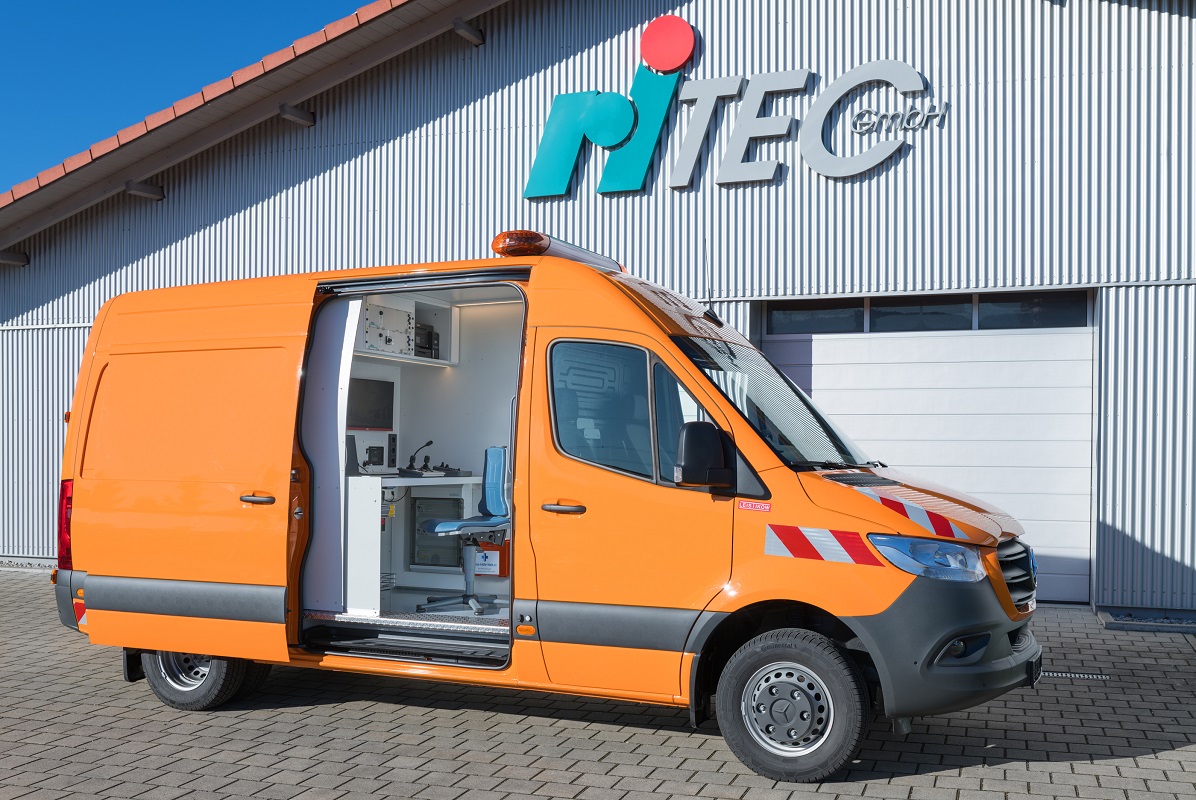

Combination vehicle sideways: view into the control room

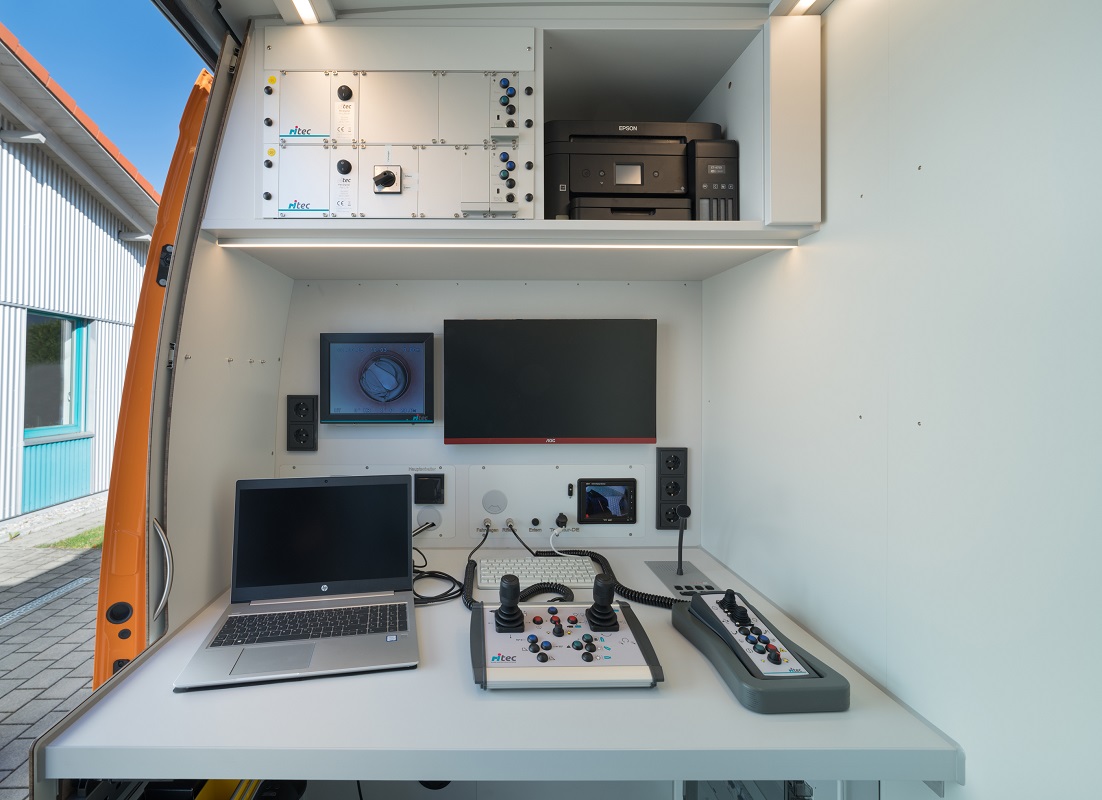

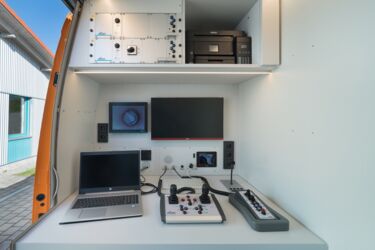

Control room


High-quality equipped control room:

  • Camera control via joysticks
  • Freely adjustable monitors for video pictures, PC and rear view system (rear room monitor)
  • Laptop with pipe inspection software
  • Lighting in LED technology
  • Cabinet for camera control and electrical technology
  • Hands-free car-kit between control room and rear working area
  • Waterproof flooring, anti-slip
  • Parking heater, temperature controlled
  • Sliding panel, serves as weather or sun protection

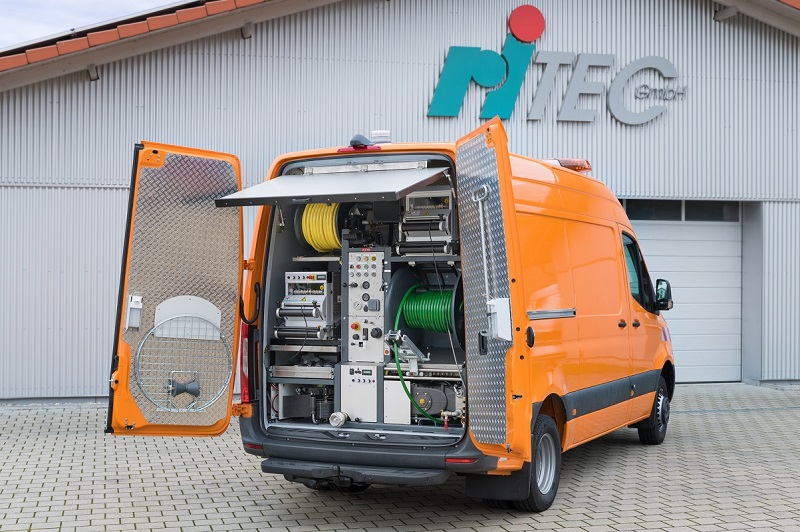

Combi vehicle rear view

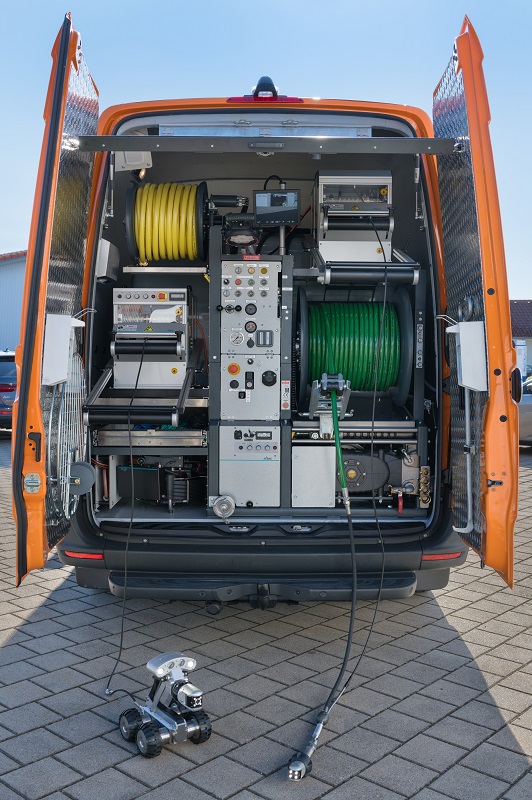

Rear working area


Control room

Performance description

This combination vehicle - here using the Mercedes Sprinter as an example - equipped with TV inspection technology and high-pressure flusher, enables inspections in main sewers, connecting pipes and property drainage systems. All pipes and lines can be cleaned before or during the inspection.

The integrated devices enable you to record inventories of all pipelines by means of pipe inspection software and, if required, to show pipeline courses. In addition to manhole and pipe reports, digital films and images are generated and merged via the recording software.

Dimensions from DN 100 to DN 600 (DN 150 to DN 1200 with FW 150 L) can be inspected using the carriage system. The push cameras respectively the water jetting inspection cameras cover the nominal diameter range from DN 80 to DN 300 (ID 3.2" - 12"). The possibility of turning into property drainage systems is provided by the turn off able pan & rotate camera RiFlexio 2.  All pan & rotate cameras - for manholes as well as for pipes - offer the possibility of determining the diameter, even after a turn in property drainage systems.

Furthermore, this inspection vehicle offers a pleasant working environment due to the bright control room. The vehicle is also equipped with a parking heater and thus designed for winter operation.

This is just an example of a vehicle fitting. We gladly arrange your individual inspection vehicle according to your wishes and requirements.
