RI 106 FW

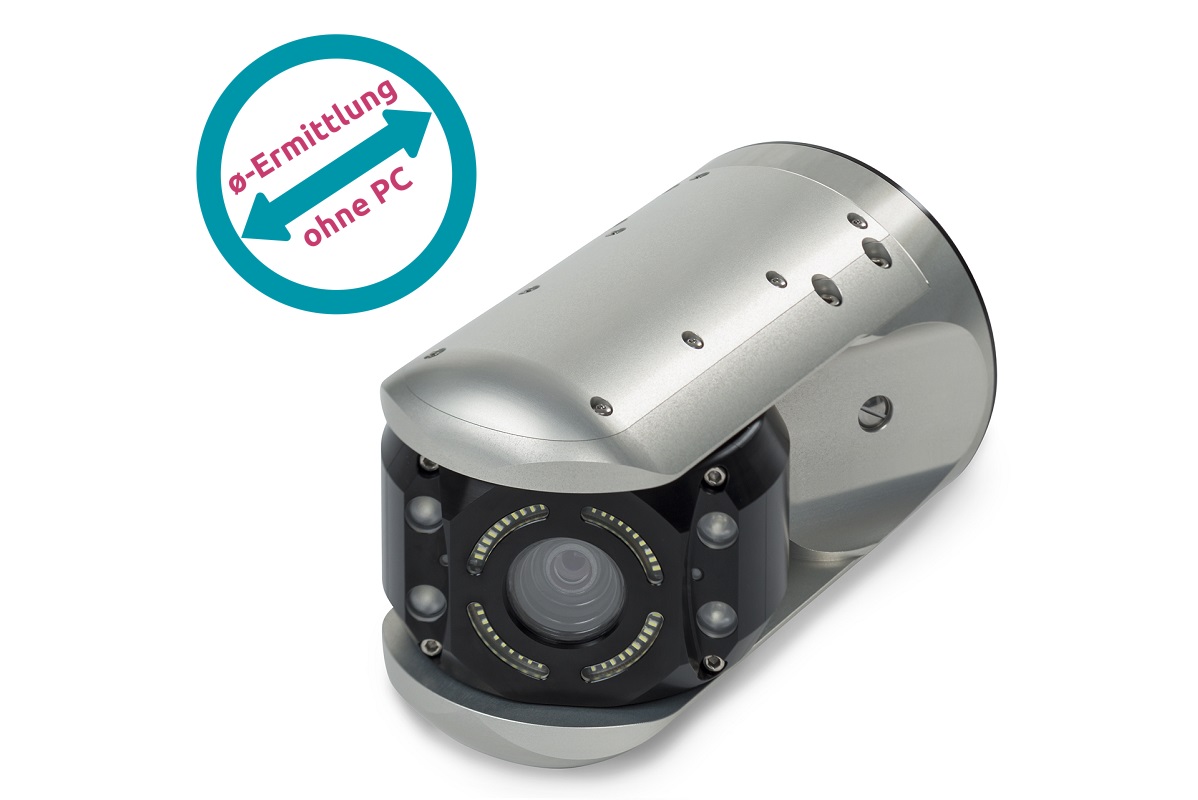

With the pan & rotate camera RI 106 FW you have a crawler camera with strong optics. It is suitable for larger pipe diameters.

  • Pan & rotate camera
  • Digital
  • DN 150 - DN 1200

description

  • (in conjunction with back eye camera from DN 300)
  • Pan angle: ±130°
  • Determination of diameter without PC from DN 200 to DN 1200
  • Pan angle incl. viewing range ±151°
  • Endless rotation
  • Slip clutch in rotation and pan axis
  • Automatic and manual aperture control
  • Automatic self leveling picture (can be disabled)
  • Camera head zero setting with selectable remote focusing
  • Pan axis supported on both sides
  • High-performance LED light with separate light control for close-up and remote areas
  • Protective glass combination made of sapphire and special plastics
  • Pressure sensor with pressure drop alarm function
  • Two-point laser
  • Automatic and manual aperture control
  • 20x zoom without optical losses and 10x digital
  • Macros for moving along sleeves
  • 90° pan position left/right
